Sticky notes

Sticky notes allow you to annotate flows with documentation, comments, and organizational information directly on the flow canvas. Notes help document workflow logic, add TODOs, or explain complex sections to team members.


To document and visually cluster a set of nodes, use flow groups instead.

Creating sticky notes​

Notes can be placed anywhere on the canvas for general comments or documentation.

Method 1: Toolbar button

  1. Click the sticky note button in the top toolbar
  2. Drag and drop on the canvas to position the note

Method 2: Context menu

  1. Right-click anywhere on the canvas
  2. Select "Add sticky note" from the context menu

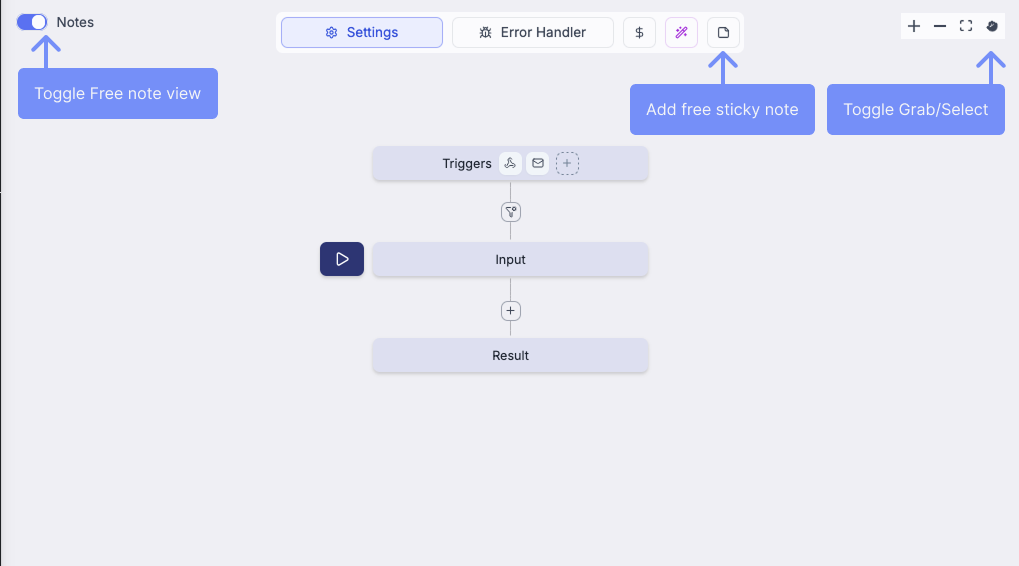

Sticky notes interface

Managing sticky notes​

Editing content​

Double-click any note to edit its content. Notes support GitHub-flavored Markdown (GHMd) for formatting.

Customizing appearance​

Each note has an action bar in the top-right corner with the following options:

  • Color picker: Change note color (supports both light and dark themes)
  • Lock icon: Lock the note to prevent accidental editing or movement
  • Delete button: Remove the note from the flow

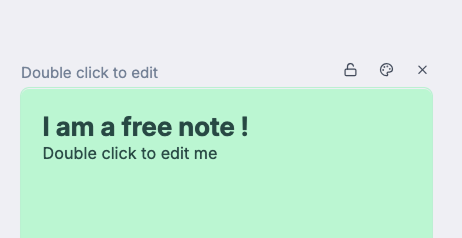

Sticky note action bar

Positioning notes​

Drag notes freely around the canvas to position them where most relevant. Locked notes cannot be moved until unlocked.

Hiding and showing notes​

Use the toggle button in the top-left of the flow pane to hide or show all sticky notes. This is useful when you need a clean view of the flow logic or when presenting to stakeholders.
